Technical features
-Tubes diameter: from Ø40 to Ø200 mm
-Working length: from 10 to 100 mm
-Materials: steel (max thickness 3 mm), stainless steel (max thickness 2 mm), aluminium (max thickness 5 mm)

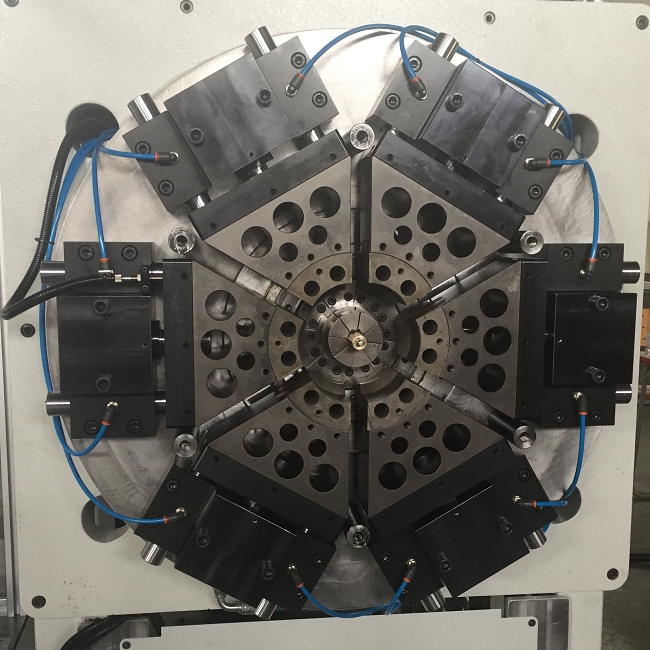

-External hydraulic die for high precision forming
-Forming parameters can be set thanks to the CNC axis control
-Possibility of stepwise forming
-Automatic part rotation
-Hydraulic power station equipped with air-oil heat exchanger
ASK FOR INFO
Insights

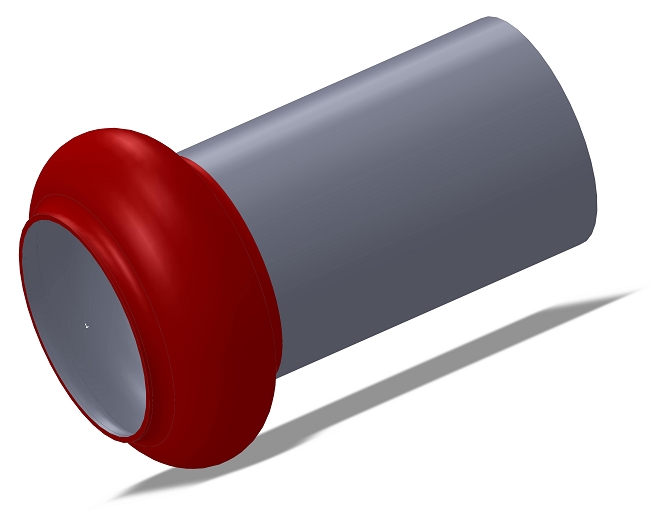

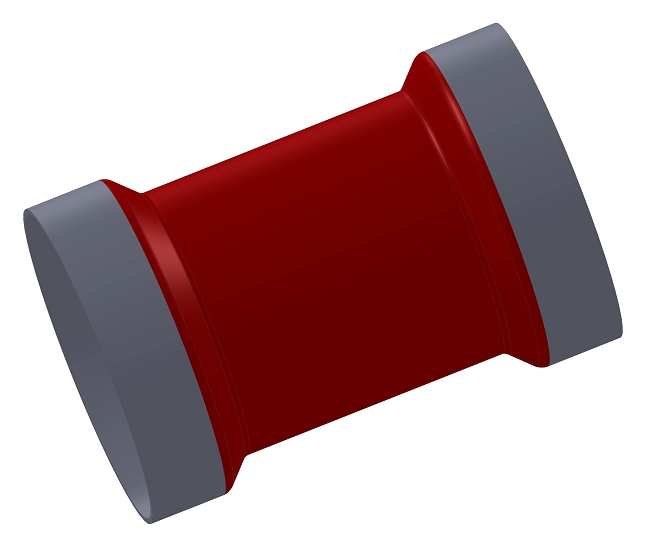

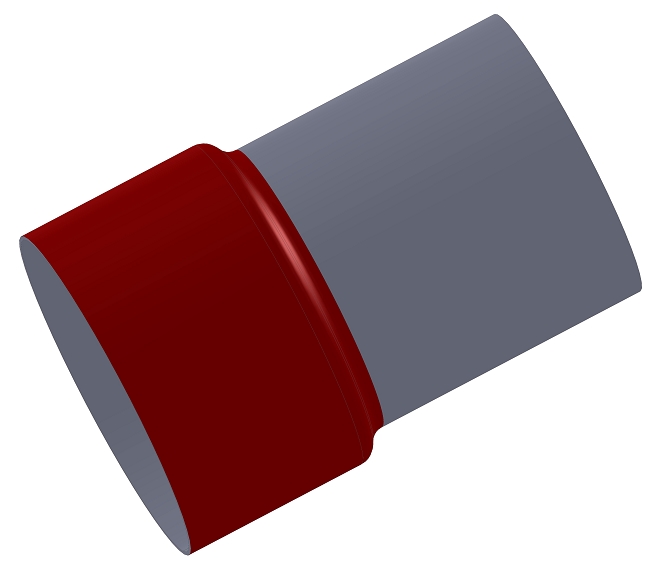

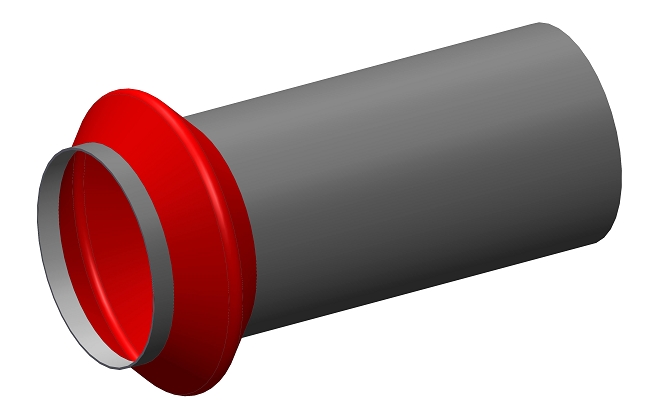

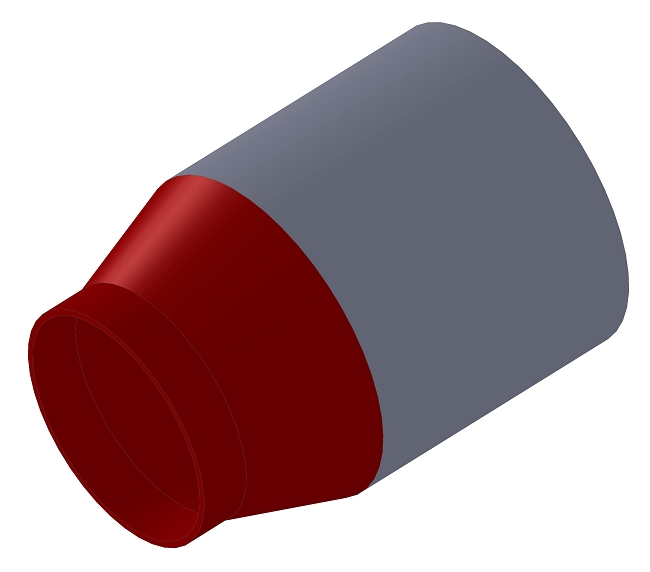

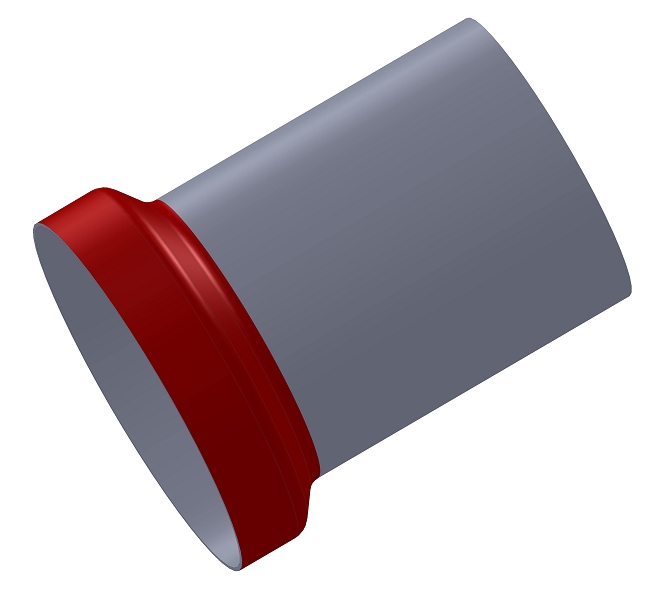

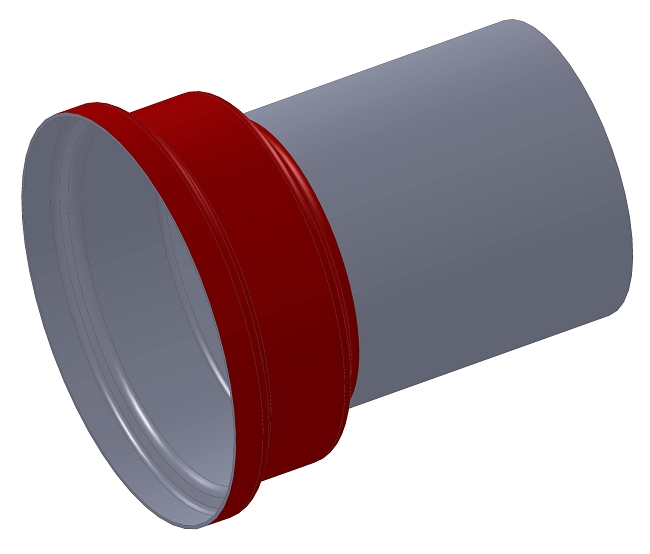

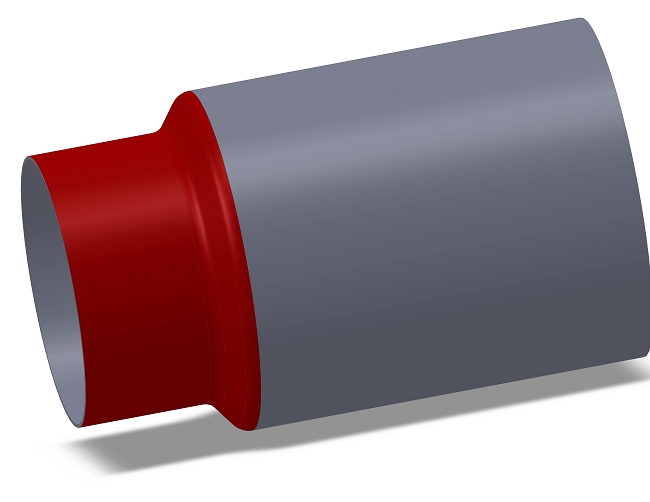

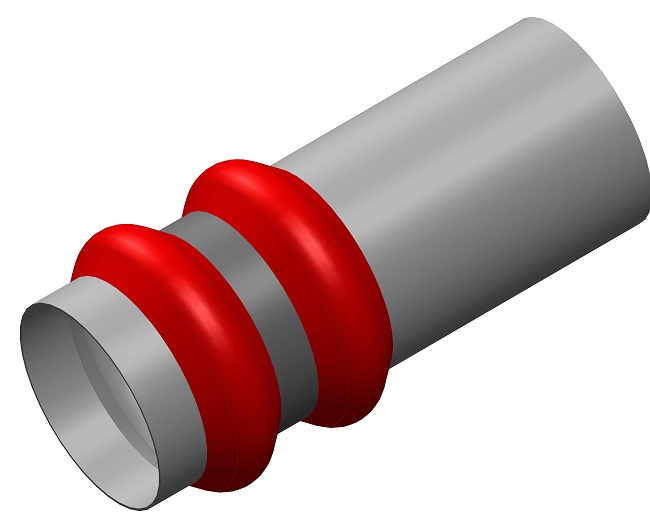

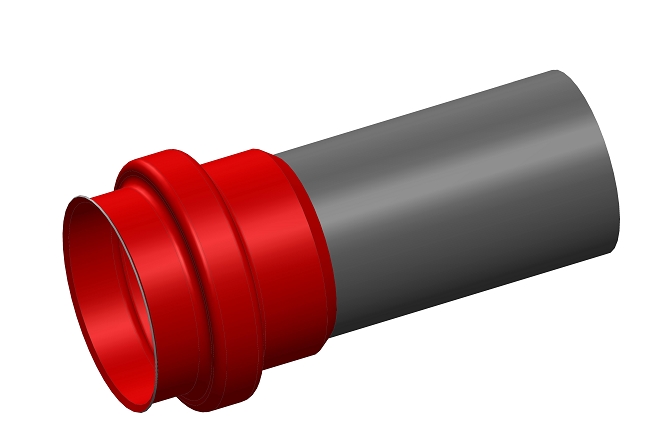

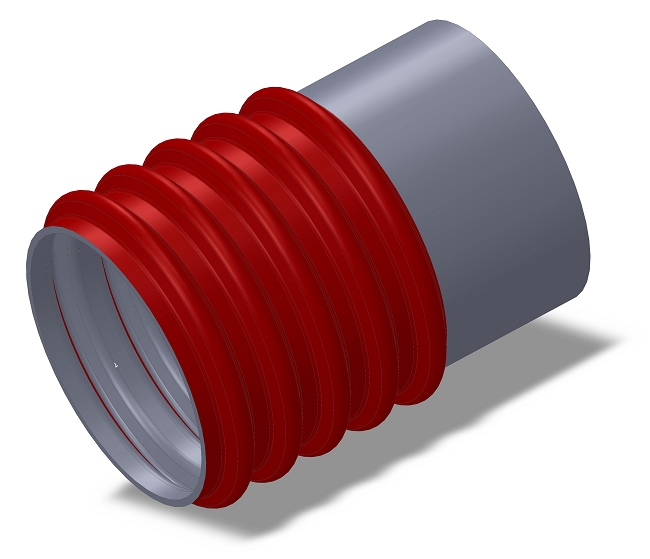

Some process examples are shown in the photos above.
For feasibility studies or further information, please contact sales@pbengineering.it
The macchine is supplied with forming or calibration tools.
Application fields examples: ventilation, smoke evacuation, automotive, construction
