Technical features
-Pipes diameter: Ø80 to Ø200 standard, Ø55 to Ø450 optional
-Beading height: 20 to 50 mm standatrd, 20 to 100 mm optional
-Max thickness: 3 mm standard steel, 1 mm stainless steel
-Cycle time: 1-3 s

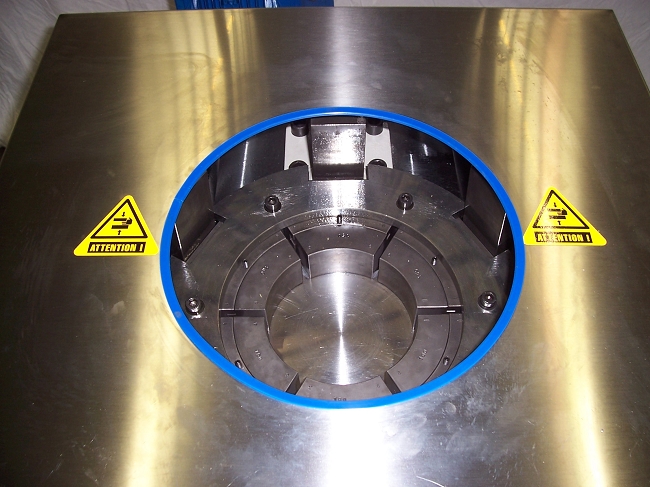

-The hydraulic expansion tool can be divided in 10, 8 or 6 sections depending on the desired final surface quality
-Vertical or horizontal head
-Optional swivelling unit
ASK FOR INFO
Insights

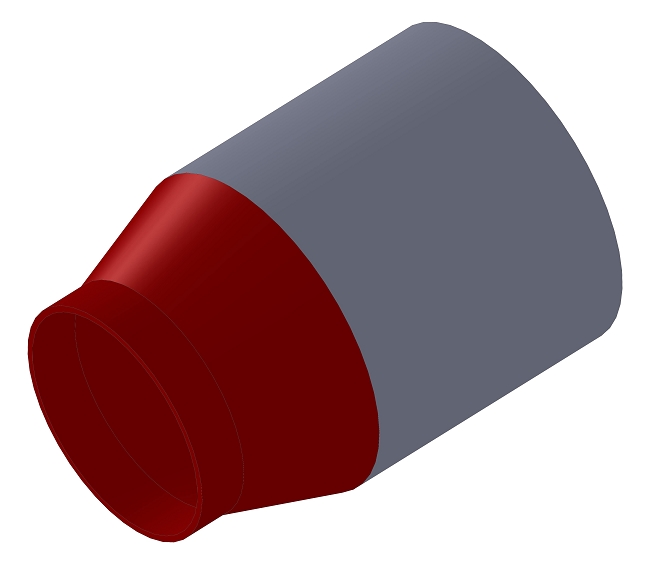

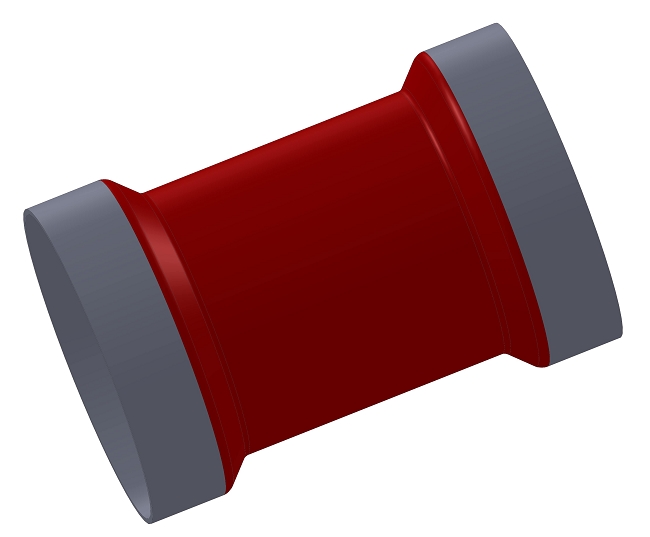

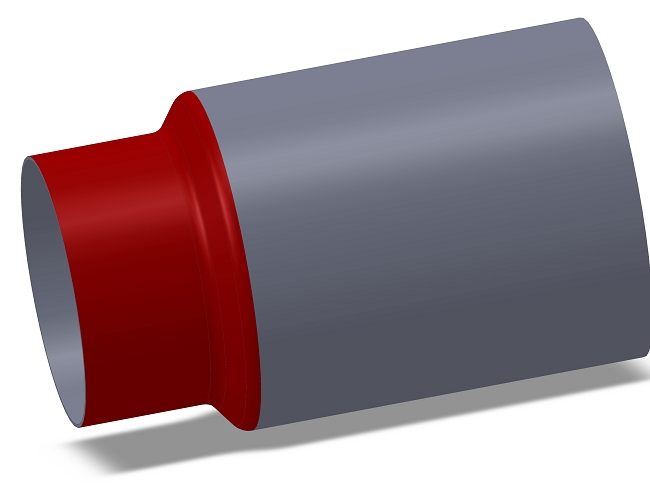

The achievable tubes and pipes shapes are shown above. For a feasibility study or further information, please contact sales@pbengineering.it
