Technical features

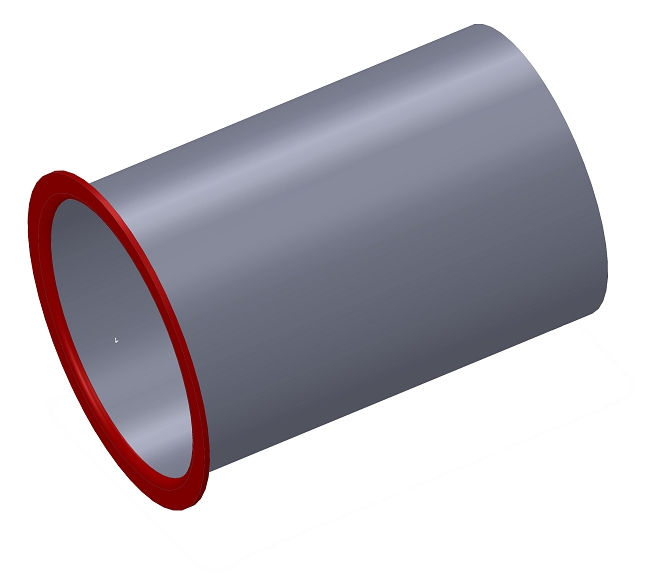

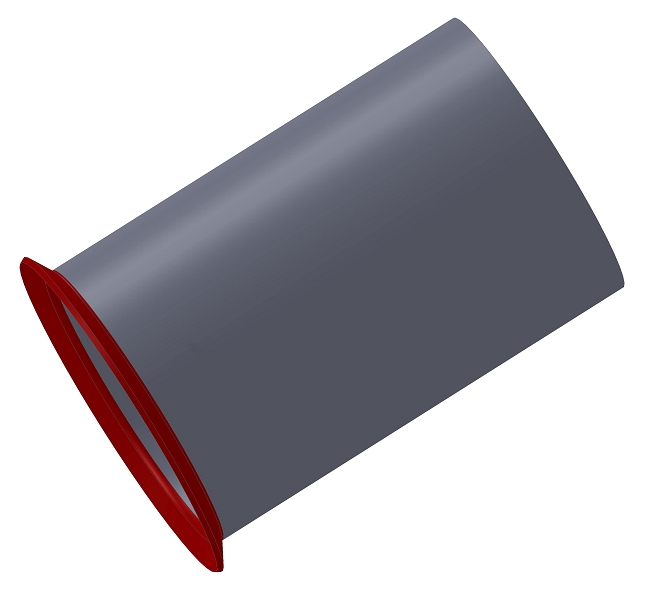

This machine can make 90° flanges or flaring.
-Diamater range: from Ø20 mm to Ø200 mm
-Max steel thickness: 2 mm
-Max stainless steel thickness: 1,5 mm
-Maximum flange length: 10 mm (but it depends from the pipe diameter)
-Maximum pipe length: 2000 mm
-Cycle time 5-10 s
-Hydraulic plant provided with cooling system
ASK FOR INFO
Insights

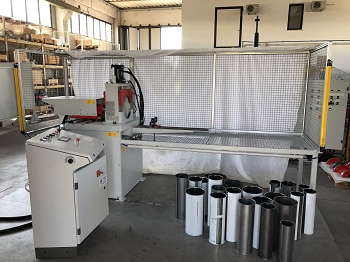

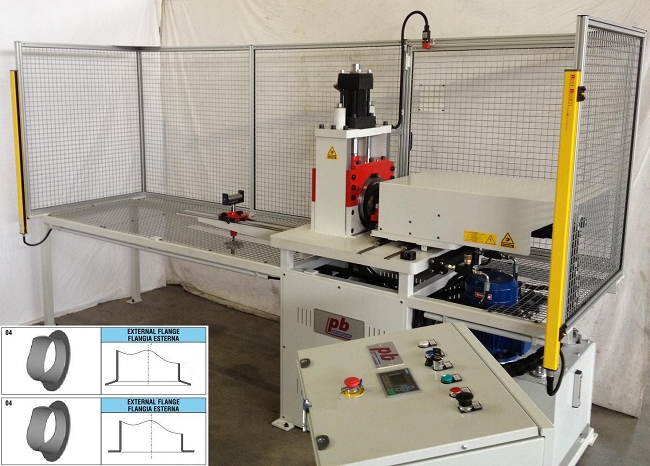

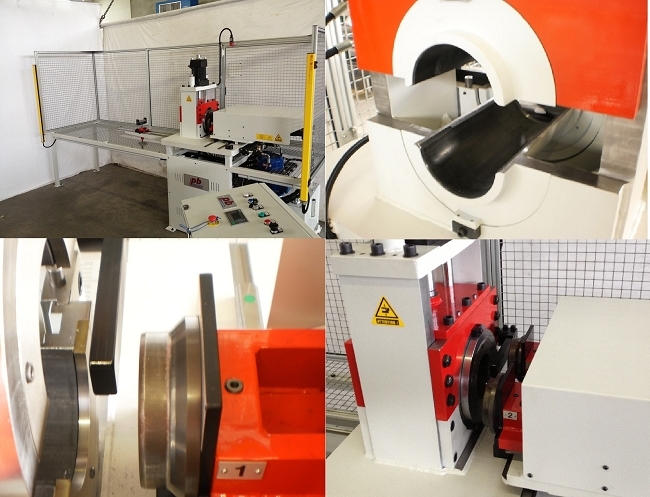

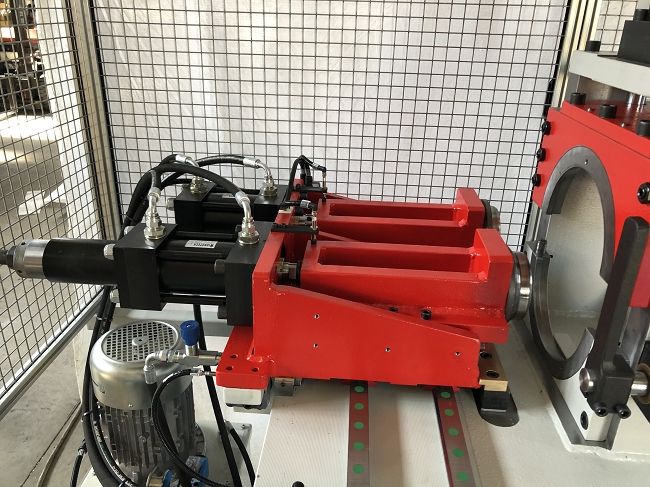

Flanging machine for pipes with double mobile head. Unlike standard trimming and beading machines, flanging process in MFO machines doesn't require any spindle or part rotation.
