Tube end forming machine

This Machine is different from other model because the piece doesn’t spinning and dosen’t have rolls. There is one hydraulic system and sectors with horizontal movement on all perimeter of part

The machine can work with horizontal or vertical tube. It is fine for tube end calibration, to join  2 tubes.
Diameter from 50mm to 300mm. Thickness 0.8 to 4mm

Machine by special expander system can forming edge, calibration, cutting, reducing  tube

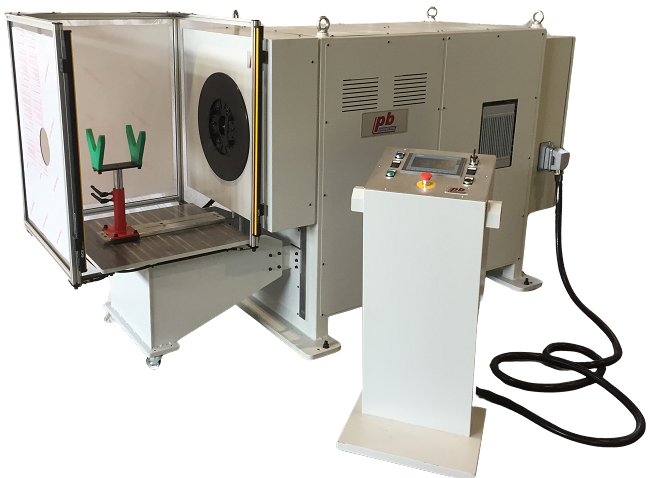

<b>MTP</b> - Tube end forming machine
MTP - Tube end forming machine

Machine for tube IO-forming (expanding, reducing, ribbing or calibration). Equipped with CNC-controlled expansion die and automatic part rotation.

DISCOVER

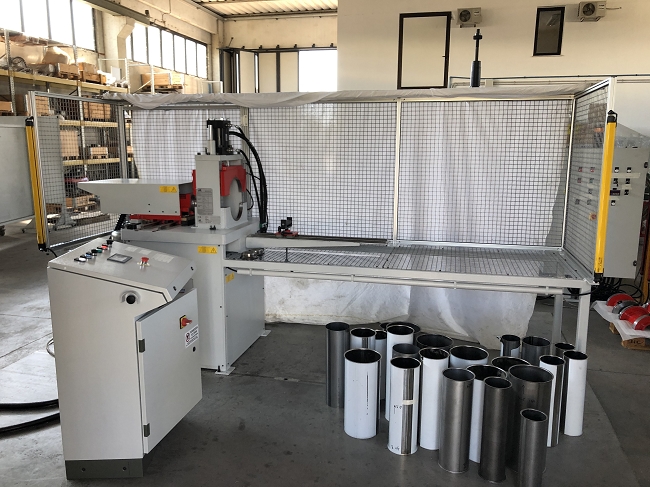

<b>MFO</b> - Tube end flanging machine
MFO - Tube end flanging machine

Tube end flanging machine for pipes up to 2000 mm long without any spindle or part rotation

DISCOVER

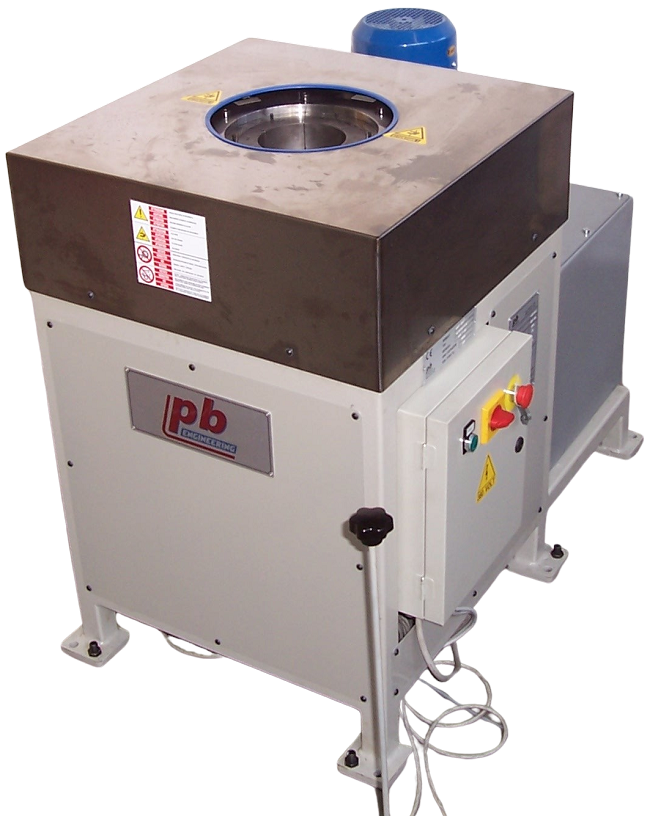

<b>MMV</b> - Tube end reduction machine
MMV - Tube end reduction machine

Hydraulic machine for tube end reduction and calibration. It can be supplied with vertical or horizontal working position.

DISCOVER

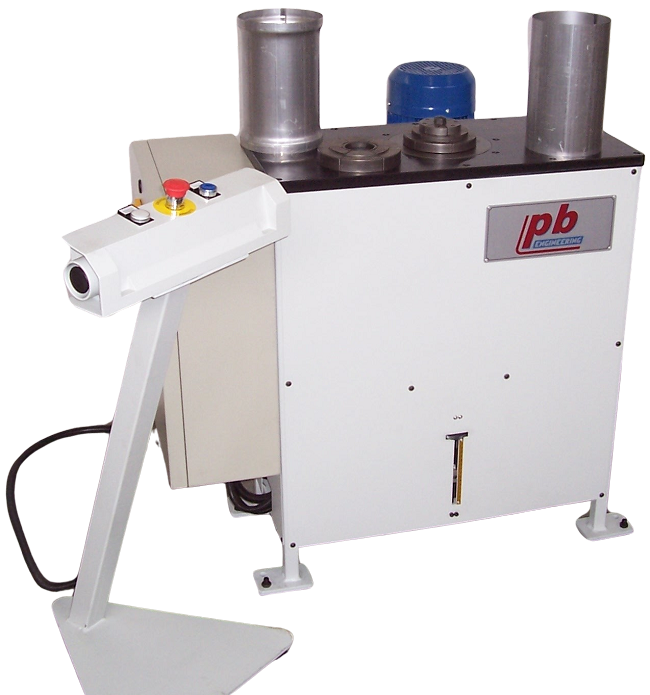

<b>MBV</b> - Tube end expansion machine
MBV - Tube end expansion machine

Hydraulic machine for tube end expansion and calibration. It can be supplied with horizontal or vertical working position.



DISCOVER
