Technical features
-2x 5.0 kW Electric motors with speed control
-Working cycle management by PLC
-Hydraulic power 3.0Kw
-Vertically adjustable working table
-Down holder
-Pneumatic, hydraulic or electrial working unit
-Max steel thickness 8 mm
-Max stainless steel thickness 5 mm
-Max aluminium thickness 10 mm
For more information please contact our sales office
ASK FOR INFO
Insights

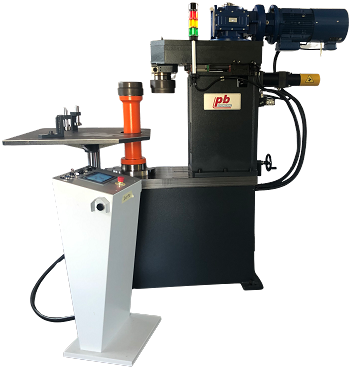

This machine is able to carry out parts trimming and beading without any die. Suitable for medium to small production series and frequent changeovers.. Thicknesses up to 8 mm
Machine is suitable for sheet metal shape Round or Oval of all sizes and thicknesses, it could be possible to have drawn pieces that body cylinder by Bending process.
Spindle speed controlled by inverter. Tailstock for clamping the workpiece
Management of work processes through touch screen operator panel on the control desk to coordinate operating unit, down holder , speed inverter with 100 programs manageable time.
Machine is supplied with semi-automatic or automatic configuration, we also provide for automatic loading and unloading part. It is possible also an automatic evacuation scrap.
