Circular shear and Flanging machine for radius 100mm
cod. MTD-B-5050-8-100

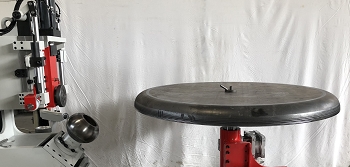

The Circular Sheet Cutting & Flanging Machinemachine can cut the external edge on conic parts or sheet metal flat.

Circular shear and Flanging machine for radius 100mm
Circular shear and Flanging machine for radius 100mm

Technical features

Maximum diameter  5000mm and thickness 8mm
Special edition are made until the 8000mm.
Other model with gap 750mm or 500mm
The Blades spinning is by hydraulic or electric motor.


ASK FOR INFO

Insights

By replacing the blades with couple of rolls, this machine can make flanges with different radius.
This model can make the beading on perimeter and also inside the conic part until the 1250mm from external side. Also gap 750mm and 520mm.
