Insights
K+H offers production solutions that can be flexibly scaled to produce joining edges (weld edges)
- Servo-hydraulic axes control: robust and accurate
- Forming forces up to 24 t
- Clamping forces up 15 t – no expanding nut required
- Universal head centring
- Servo-hydraulic height adjustment of workpiece fixture
- 80% less setup time and setup errors
- Flexible programming
- Perfect repeat accuracy
High forming forces, accurate positioning

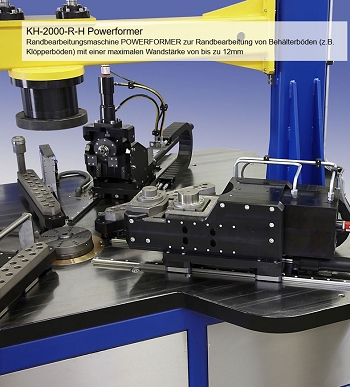

With its POWERFORMER, KURTH + HEUSER presents a new line of machines for the edge forming of vessel heads with torispherical, semi-ellipsoidal, elliptical and other geometries. The special feature of these machines is the combination of the proven servo-hydraulic axes with the securely guided high forming force of up to 24 t. The freely programmable, servo-hydraulic vertical adjustment of workpiece fixtures and clamps allows the POWERFORMER to be used flexibly and effectively. A generously dimensioned block guidance of the actuators ensures a high level of availability, quality and repeat accuracy.
Modular design
Machines of the POWERFORMER line are made up of modular basic machines. In addition to trimming and beading, further actuators are available to facilitate e.g. the rounding of workpiece edges. A highly accurate circumference measuring system is available as an option to ensure the reliable processing of vessel heads. Fitted with the matching handling system (handling automats, manual systems), the POWERFORMER can be optimally integrated into any existing process chain.
Programming
Machines of the POWERFORMER line are easy to set up thanks to their various input options such as tool diameter, vessel head diameter, etc. The positions of all axes are saved in a workpiece-specific data set. All setting parameters are readily available whenever a product is changed. In conjunction with the servo-hydraulic height adjustment of the tool fixture, the set-up time can be reduced by up to 80%.
K+H offers production solutions that can be flexibly scaled to produce joining edges (weld edges)
- Torispherical heads
- Elliptical heads
- Semi-ellipsoidal heads
- Flat heads
- Elliptical heads
- Vessel heads, etc.
