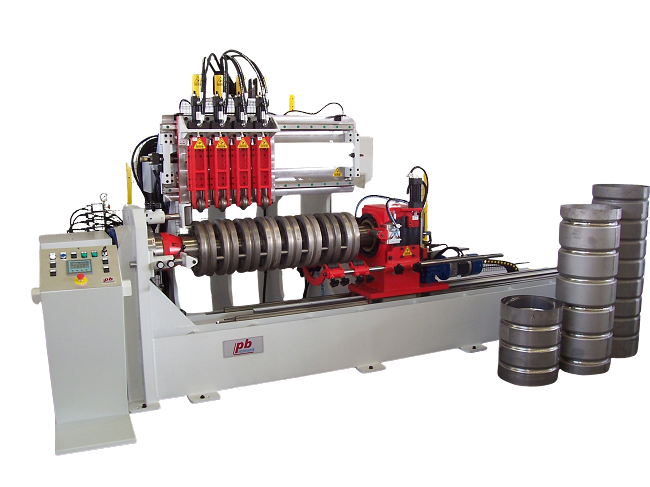

MBO - Horizontal tube ribbing machine
cod. MBO

MBO with horizontal axis for long tubes up to 3000 mm.
Edge beading machine with single spindle horizontal axis.

<b>MBO</b> - Horizontal tube ribbing machine
<b>MBO</b> - Horizontal tube ribbing machine

Technical features

Quick tool change system.
Hydraulic machine or hydraulic axes controlled.
For more information please contact our sales office


ASK FOR INFO

Insights

Edge beading machine with single spindle horizontal axis. Suitable for process tubes or ferrules of length up to 3000mm.
Management of spindle speed by inverter. Tailstock for clamping the workpiece.

Loading and unloading can be manual or automatic.

Management of work processes through touch screen operator panel on the control desk to coordinate operating units, tailstock, speed and inverter.
Management capabilities with axis CNC hydraulic proportional valves and positioning of work units with programmable electrical axis.

Hydraulic machine or hydraulic axes controlled. For more information please contact our sales office
