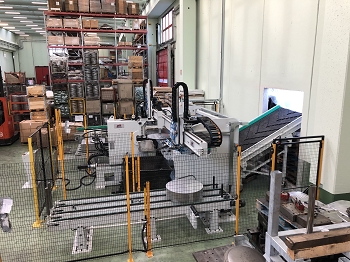

The automatic shear has a loading position for square sheet metal bundles. Horizontal transfer to move the stack of sheets into position for the sheet lifter. System for separating sheets. Brushless motors to lift and move the part to the Shear shear. Thicknesses up to 8 mm of mild steel and 5 mm of stainless steel.Automatic unloading of scrap using a belt system. The cutting system has a controlled axis to maintain the phase of the cut part. The disk is stored on a horizontal unloading transfer and each part is marked for batch identification.Autonomy of the line without operators for up to a maximum of one hour, depending on the thickness and size of the sheets.

Thickness up to 8mm mild steel and 5mm of stainsteel.
